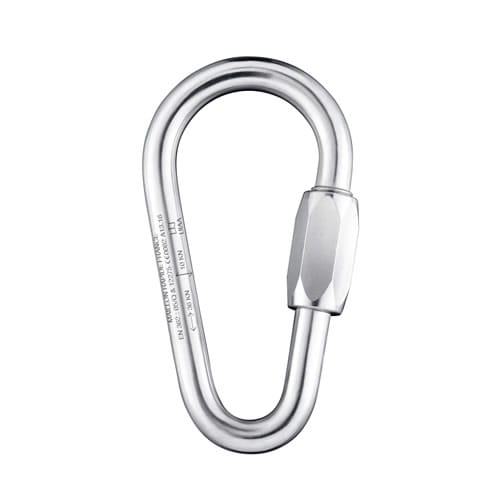

Maillon Pear Screw-link

Clear
Check Price

Pear shapes are great for attaching to harnesses that have webbing attachment points as they are wide opening and the rounded end of the pear is easy on the webbing. They are also useful whenever a wide opening or larger internal volume is needed, ie. connecting to a round bar.

  • Additional information
  • Specifications

Additional information

Material

Stainless Steel, Steel

Diameter

, , ,

Specifications

Steel Specifications

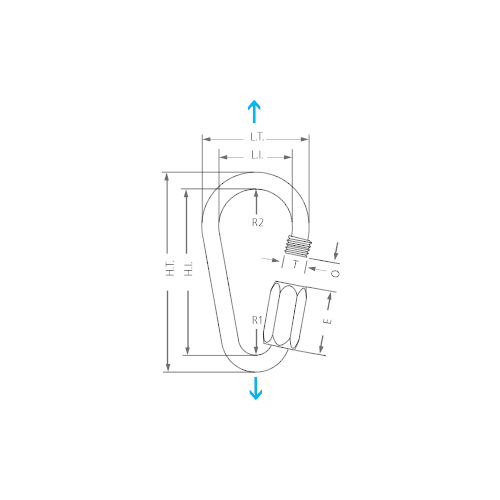

Code Size Weight Dimensions PPE SWL Gate Width
QPZ10 10mm 182g 63 x 118mm ↔36kN 720kg 21mm
QPZ12 12mm 321g 76 x 144mm ↔44kN 880kg 24mm

Stainless Steel Specifications

Code Size Weight Dimensions PPE SWL Gate Width
QPS07 7mm 72g 48 x 90mm ↔27kN 550kg 16mm
QPS08 8mm 108g 53 x 100mm ↔33kN 660kg 18mm
QPS10 10mm 187g 63 x 118mm ↔55kN 1100kg 21mm
QPS12 12mm 329g 76 x 144mm ↔38kN 1500kg 24mm
