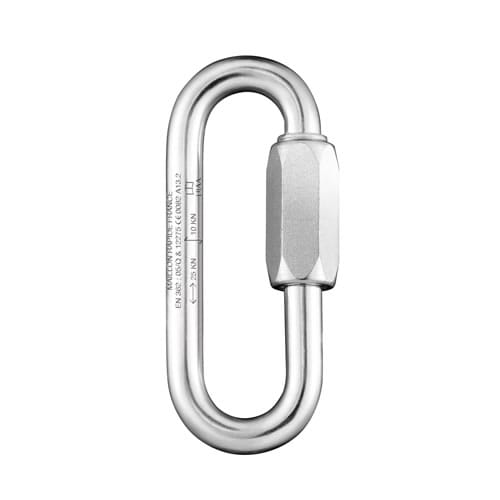

Maillon Rapide Wide Oval Screw-link – Stainless Steel
Price range: $9.00 through $58.00
Wide mouth screw-links are useful when a thick rope or chain needs to be attached, or the extra length of the link is an advantage. Often these are needed to connect to eye-bolts or other anchors, when the thickness of the anchor requires the wider opening.
Additional information
| Material | |
|---|---|
| Made In | |
| Manufacturer | Peguet |
Stainless Steel Specifications
Stainless Steel Specifications
| Size | Weight | H.T. (Outside Length) | H.I. (Inside Length) | A (Inside Width) | O (Gate Opening) | E | T | MBS | SWL |
| 3.5mm | 11g | 46mm | 39mm | 10mm | 10mm | 16mm | 5mm | 10kN | 200kg |
| 6mm | 42g | 70.5mm | 58.5mm | 14.5mm | 14.5mm | 25mm | 9mm | 29kN | 580kg |
| 7mm | 61g | 79mm | 65mm | 16mm | 16mm | 28mm | 10mm | 40kN | 800kg |
| 12mm | 275g | 124mm | 100mm | 23.5mm | 23.5mm | 43mm | 15mm | 110kN | 2200kg |
