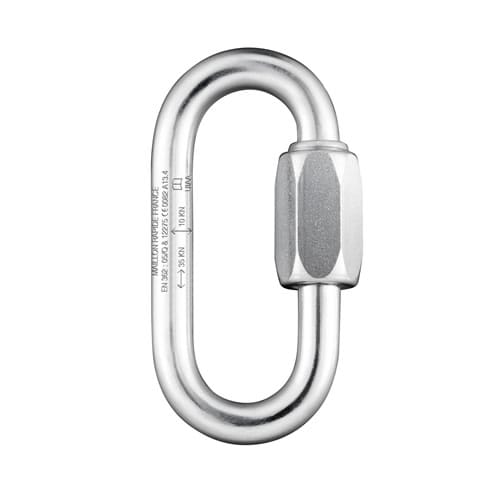

Maillon Rapide Oval Screw-link – Steel
Price range: $5.25 through $45.00
The standard oval shapes are the most widely used screw-links. They are ideal for connecting to hardware such as bolt hangers or wire cables, and have the highest strength of any screw-link shape for the size of the material. They are also the cheapest option.
Genuine Maillon Rapide made in France
Additional information
| Weight | 0.077 kg |
|---|---|
| Made In | |
| Manufacturer | Peguet |
Steel Specifications
Steel Specifications

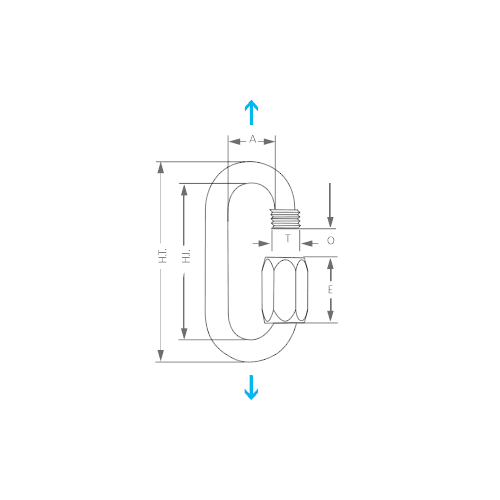

| Size | Weight | H.T. (Outside Length) | H.I. (Inside Length) | A (Inside Width) | O (Gate Opening) | E | T | MBS | SWL |
| 6mm | 34 g | 57mm | 45mm | 14.5mm | 7.5mm | 19mm | 9mm | 20kN | 400kg |
| 8mm | 77 g | 74mm | 58mm | 17.5mm | 11mm | 24mm | 11mm | 35kN | 700kg |
| 10mm | 137g | 89mm | 69mm | 20.5mm | 12mm | 29mm | 13mm | 55kN | 1100kg |
| 12mm | 232 g | 104mm | 80.5mm | 23.5mm | 15mm | 33mm | 15mm | 75kN | 1500kg |
| 14mm | 365 g | 121mm | 93mm | 26.5mm | 17mm | 38.5mm | 17mm | 108kN | 2200kg |
| 16mm | 562g | 140mm | 108mm | 29.5mm | 19mm | 45mm | 19mm | 145kN | 2900kg |
Stainless Steel Specifications
Stainless Steel Specifications
| Size | Weight | H.T. (Outside Length) | H.I. (Inside Length) | A (Inside Width) | O (Gate Opening) | E | T | MBS | SWL |
| 3mm | 5g | 31mm | 25mm | 8.5mm | 4mm | 9mm | 4mm | 8kN | 160kg |
| 5mm | 21g | 49.5mm | 39.5mm | 13mm | 6.5mm | 16mm | 7mm | 23kN | 450kg |
| 7mm | 52g | 66mm | 52mm | 16mm | 8.5mm | 21.5mm | 10mm | 45kN | 900kg |
| 8mm | 79g | 74mm | 58mm | 17.5mm | 11mm | 24mm | 11mm | 55kN | 1100kg |
| 10mm | 140g | 89mm | 69mm | 20.5mm | 12mm | 29mm | 13mm | 90kN | 1800kg |
| 12mm | 238g | 104mm | 80.5mm | 23.5mm | 15mm | 33mm | 15mm | 125kN | 2500kg |
| 14mm | 374g | 121mm | 93mm | 26.5mm | 17mm | 38.5mm | 17mm | 172kN | 3500kg |
