Maillon Square Screw-link
$10.00 – $35.00
Square shaped screw-links are used for webbing-to-webbing connections. Our main use is connecting fall-arrest lanyards to energy absorbers. They would also be ideal for connecting a webbing strap to a wire anchor strop.
Specifications
Specifications
Steel Specifications

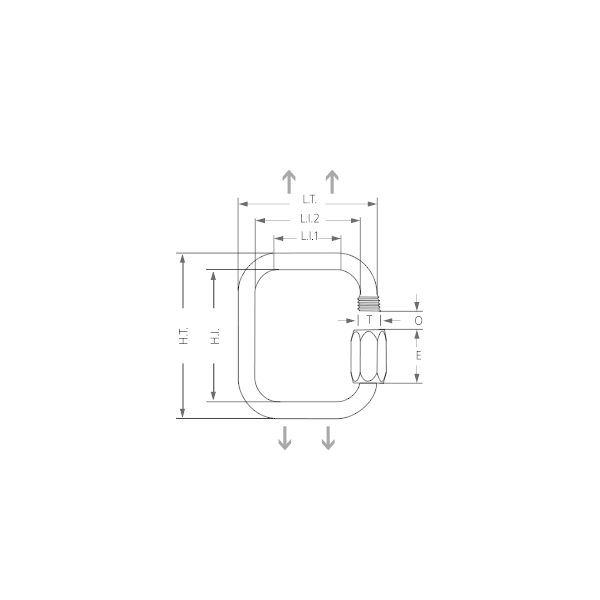

| Code | Size | Weight | Dimensions | BL | SWL | Gate Width |
|---|---|---|---|---|---|---|
| QSZ07 | 7mm | 64g | 48 x 64mm | ↔20kN | 400kg | 9mm |
| QSZ08 | 8mm | 87g | 53 x 71mm | ↔28kN | 550kg | 10mm |
| QSZ10 | 10mm | 166g | 63 x 89mm | ↔45kN | 900kg | 12mm |
Stainless Steel Specifications
| Code | Size | Weight | Dimensions | BL | SWL | Gate Width |
|---|---|---|---|---|---|---|
| QSS06 | 6mm | 44g | 43 x 57mm | ↔22kN | 450kg | 7.5mm |
| QSS07 | 7mm | 66g | 48 x 66mm | ↔30kN | 625kg | 8.5mm |
