Maillon Half Moon (D-Shape) Screw-link

Clear
Check Price

D-shaped screw-links are designed for three-way loading, and their specific application is for closing the two sides of a caving harness. The other connections such as cowstails and ascenders go onto the rounded side of the D.

  • Description
  • Additional information
  • Specifications

Description

  • Available in 10mm diameter only.

Additional information

Weight N/A
Material

Aluminium, Stainless Steel, Steel

Diameter

Made In

France

Manufacturer

Peguet

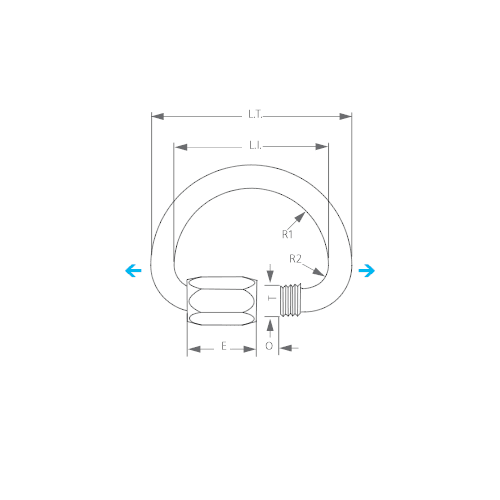

Specifications

Steel Specifications

Code Size Weight Dimensions PPE SWL Gate Width
QHZ10 10mm 152g 67 x 86mm ↔45kN 900kg 10mm

Stainless Steel Specifications

Code Size Weight Dimensions PPE SWL Gate Width
QHS10 10mm 156g 67 x 86mm ↔62kN 1250kg 10mm

Aluminium Specifications

Code Size Weight Dimensions PPE SWL Gate Width
QHA10 10mm 54g 67 x 86mm ↔25kN 510kg 10mm
