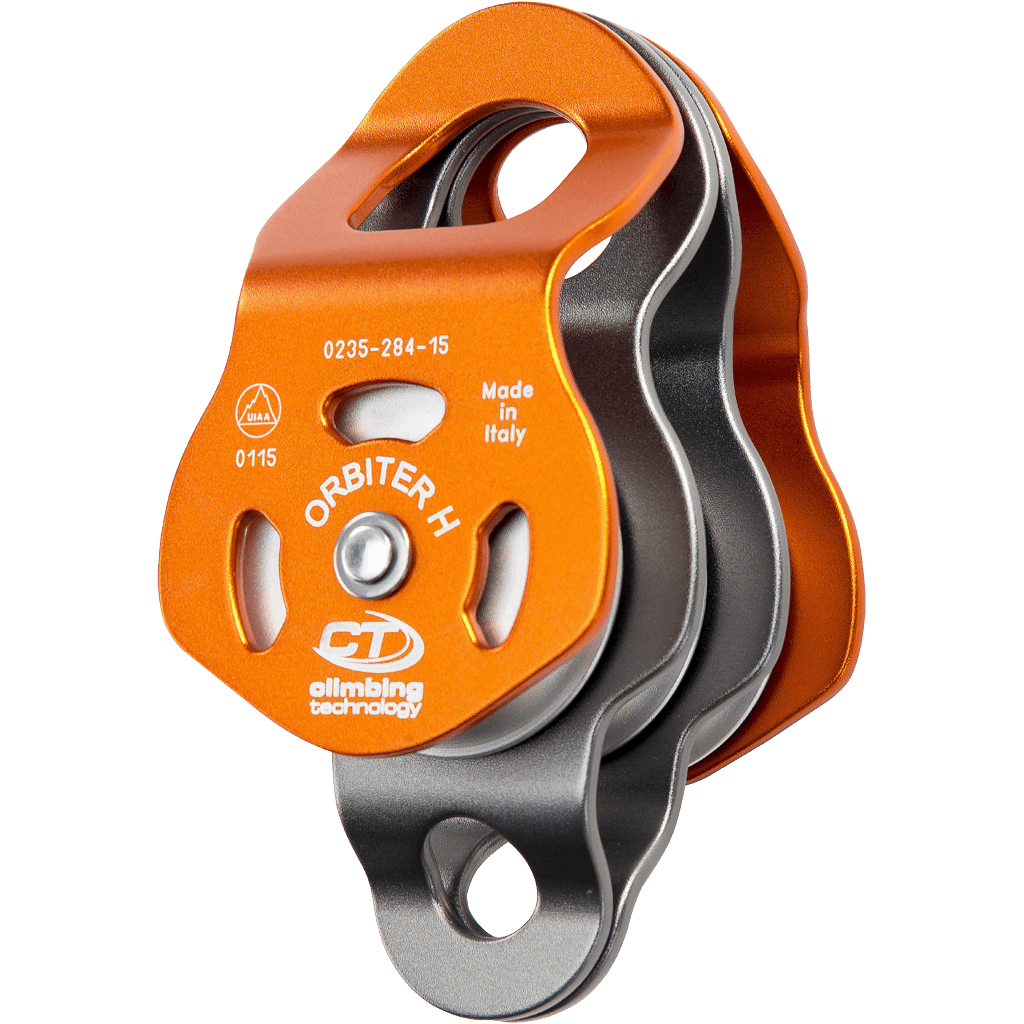

CT 50mm Orbiter H Triple Pulley

Check Price

Triple pulley with mobile side plates, very versatile and robust.

SKU: UT3A1 Categories: , Tags: ,
  • Description
  • Additional information

Description

  • Allow the insertion of two connectors in the upper eyelet and it is mounted on ball bearings.
  • The light-alloy flanges extend beyond the pulley wheels to minimise rope wear.
  • Ideal for constructing rescue winches with 6x reduction factor or in multiple pulley systems where a larger lifting force is required.
  • Additional attachment point suitable for a single connector.

Additional information

Weight 0.465 kg
Dimensions 7.0 x 13.9 x 7.3 cm
Bearing

Ball Bearing

Colour

Orange/Grey

Made In

Italy

Manufacturer

Climbing Technology

Material

Aluminium

Sheave

,

Rope Diameter

8mm-13mm

Standards

CE 0333, EN 12278:2007, UIAA

Rating

42kN
